Wifi6 4G RouterMPC602 Lte 2.4Ghz Lte Wireless Modem 300Mbps Home Indoor Wifi Router With Sim Card Slot Support ESIM
€23,81
SPECIFICATIONS
2.4g wi-fi transmission rate: 300 Mbps
5g wi-fi transmission rate: None
Antennas: 4 external antennas
Battery: NONE
Brand: RONG
Chipset: ASR 1803
ESIM: 2*ESIM
Encryption Type: WPA2-PSK,WPA2,WPA-PSK
Max Wan Date Rate: 10/100Mbps
Max. LAN Data Rate: 10/100Mbps
Network: 4G/3G
Product name: 4G cpe wireless Router
Supports WDS: No
Supports WPS: Yes
WAN Ports: 1
Wi-Fi Supported Frequency: 2.4G
WiFi Transmission Standard: WiFi 802.11 ax
Wireless Speed: WIFI6 230Mbps
application: Home
function: FireWall
lan ports: 1
max. lan data rate: 150Mbps
place of origin: Guangdong, China
private mold: Yes
products status: New
standards and protocols: Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11g,Wi-Fi 802.11ax
type: Wireless
wifi supported frequency: 2.4G
wired transfer rate: 10/100Mbps
with modem function: Yes
Specification
Category |
Feature & specification |
Description |
|
Air Interface |
Technical Standard |
Compatible with WCDMA, FDD-LTE IEEE802.11b/g/n/ax |
|
Frequency |
CAT4 : (Downlink up to 150Mbps Uplink up to 50Mbps)
CEU（Asia-Europe）: FDD LTE: B1/B3/B7/B8/B20/ TDD LTE: B38/B40/B41 WCDMA: B1/B8
EEU（Asia, Africa and Europe）: FDD LTE: B1/B3/B7/B8/B20/B28 TDD LTE: B38/B40/B41 WCDMA: B1/B8
NA（North America）: FDD LTE:B2/B4/B5/B7/B28/B66 TDD LTE: B38/B40/B41 WCDMA: B2/B4/B5
AS（Asia）: LTE FDD: B1/B3/B5/B8 LTE TDD:B38/B40/B41 WCDMA: B1/B5/B8
|
||
WIFI |
WIFI 6 @ 1T1R 2.4G 802.11 b/g/n/ax |
||
Performance |
Maximum Data Throughput |
LTE CAT 4 FDD-LTE 150Mbps/50Mbps |
|
SCO |
CPU: ASR1803 Series +AIC8800D（highest wireless speed is up to 230Mbps and supports 2.4GHz band at wifi 6.） |
||
Users |
10 |
||
Memory |
Flash： 64Mb RAM: 256Mb |
||
Power Voltage |
• AC/DC Adapter • AC Input: 100~240V, 50~60Hz • DC Output: 12V, 1A |
||
USIM/SIM |
1* 4FF SIM card （Nano）+2*ESIM |
||
LED |
1 * System （Power） • 1 * WIFI • 1* LTE（4G） |
||
I/O Interfaces |
• 1* 4FF SIM card Slot （Nano） • 1 * Reset button • 1 * USB port (only for upgrade the 4G modem) • 1 * RJ-45 for LAN Port (Ethernet 100M) |
||
Antenna |
External Antenna for LTE and WIFI |
||
Buttons |
POWER，Reset,WPS |
||
Ethernet |
1 * RJ-45 for LAN Port (Ethernet 100M) |
||
RJ11 |
NO |
||
Reset |
Pinhole |
||
ESD |
ESD Protection circuit；Contact±8KV、Air±10KV |
||
Software |
Operating System |
RTOS/Linux |
|
Management |
• Firmware Upgrade • Web Management Interface • Local Syslog • Auto Provisioning |
||
Protocols |
DHCP • IPV6/IPV4 • HTTP Server for Web Management • TFTP/HTTP for Auto Provisioning |
||
Applications |
• Support LTE • Support SMS • Firewall • DHCP Server and Client • IP conflict detection • Port Forwarding, DMZ, SuperDMZ |
||
Wireless |
• 802.11 b/g/n • 1 SSID • Static WEP(64/128bit) • Dynamic WEP(64/128bit) • WPA-PAK/WPA-PSK(2.0) • WPA/WPA2 • Station list • MAC Filter |
||
Voice |
NO |
||
Certification |
• support-FCC certification • support-CE certification • support-RoHS compliance |
||
Environment |
Operating Temperature |
Normal:-10°C to +45°C; |
|
Storage Temperature |
-20° C to +60° C |
||
Humidity |
10%~ 90% No Condensing |
||
Packaging |
• 1* 4G LTE Router • 1 * Ethernet cable • 1 * Power adapter • 1 * Quick Installation Guid |
||
Product Description

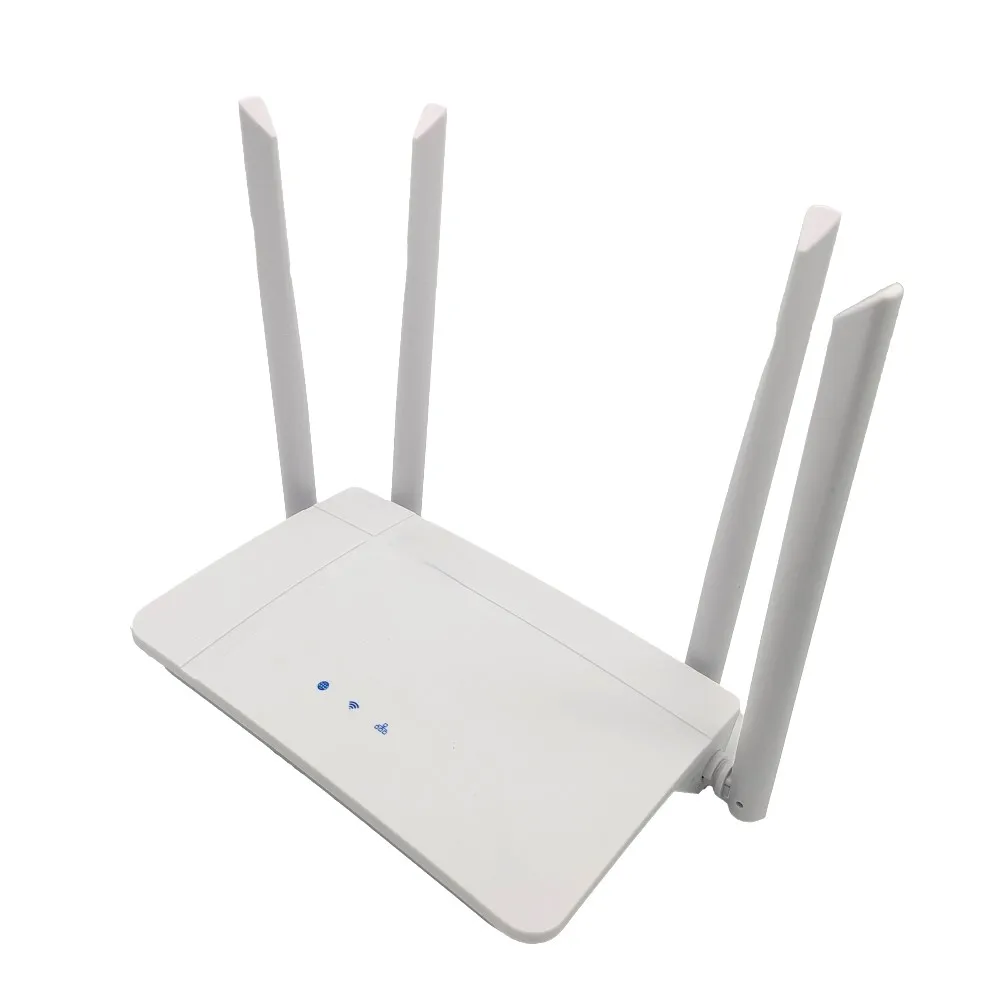

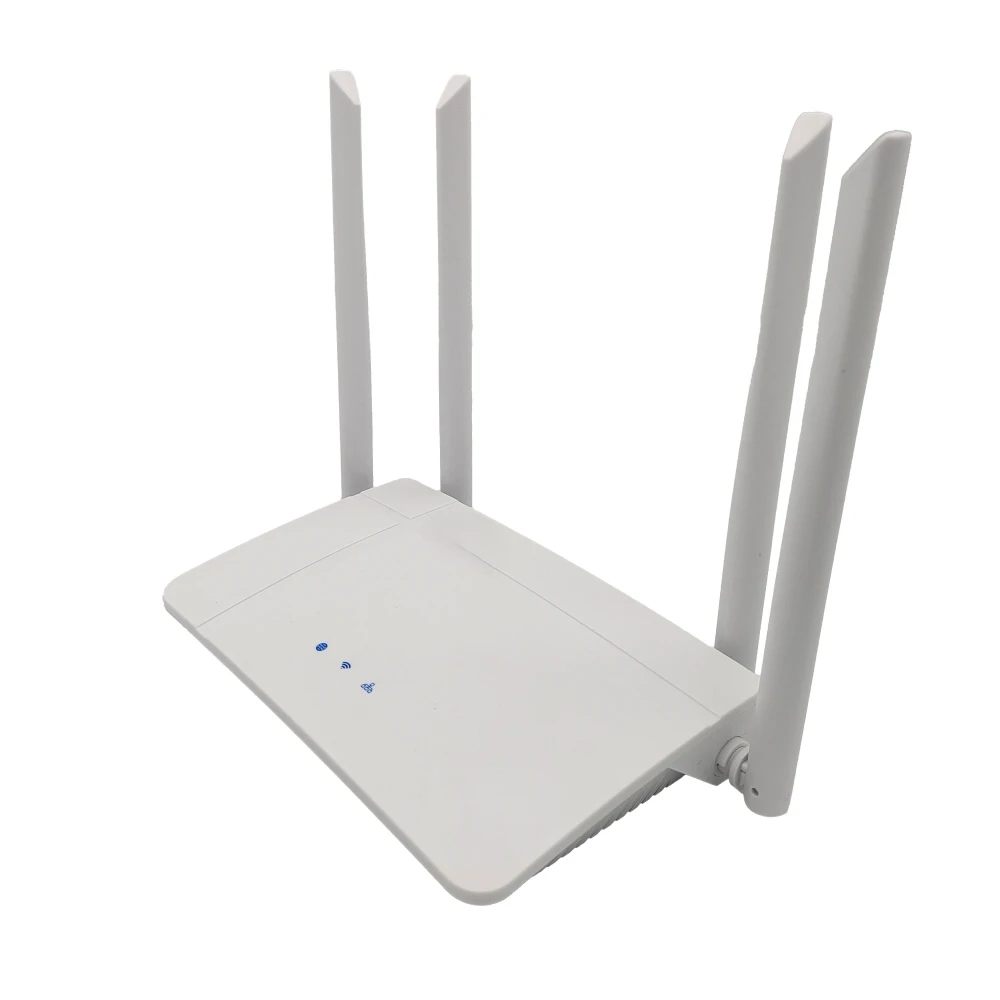

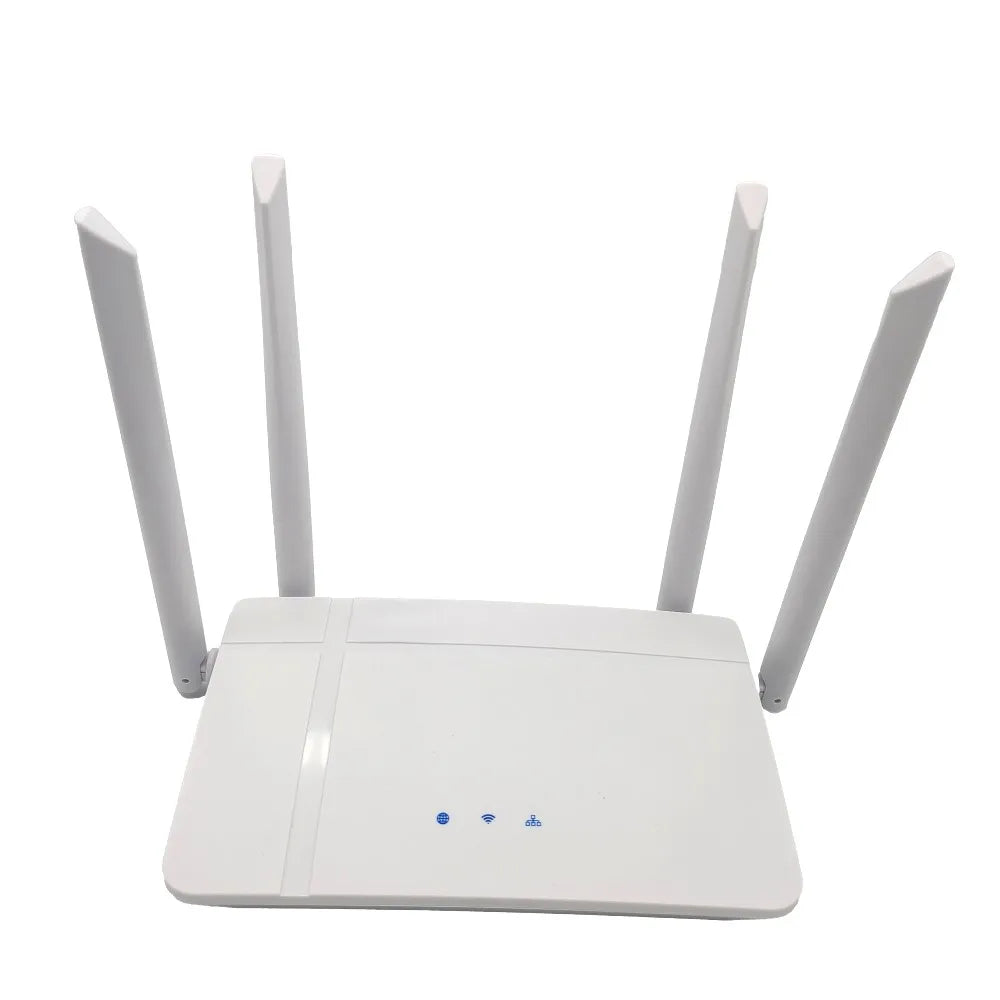

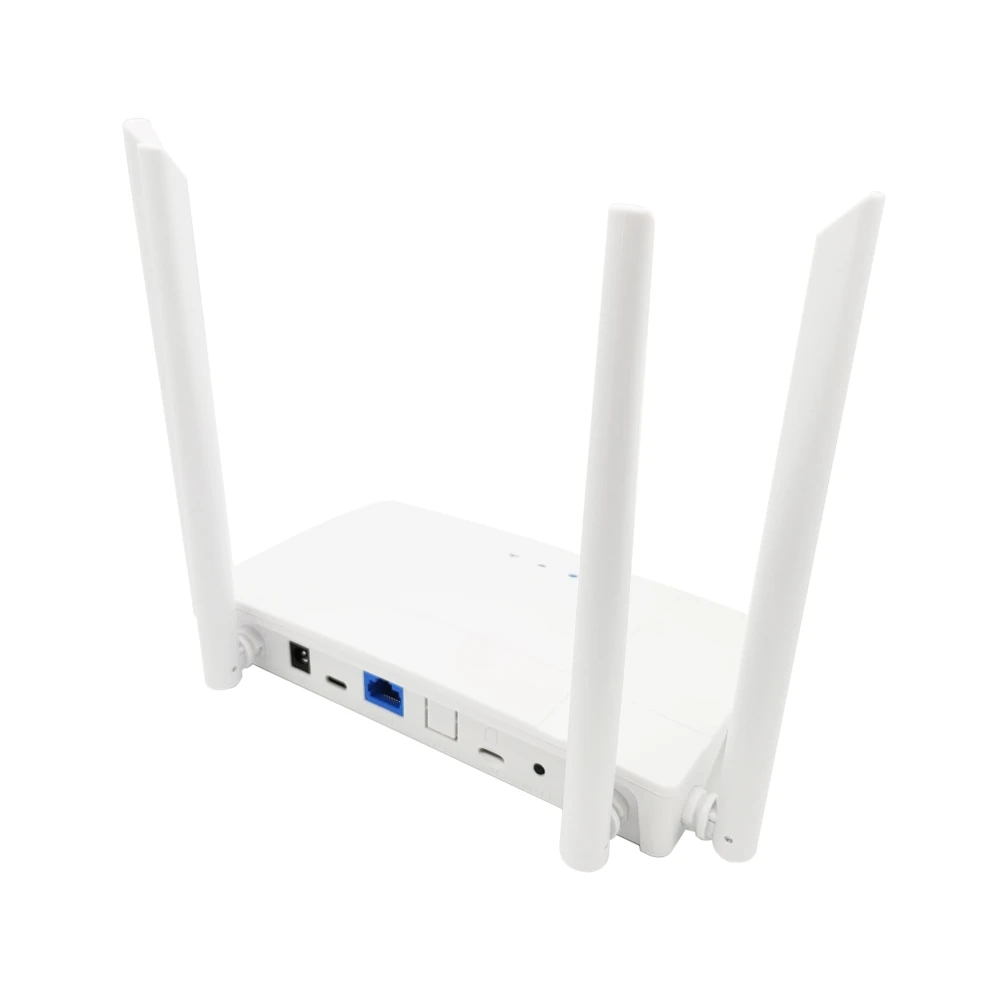

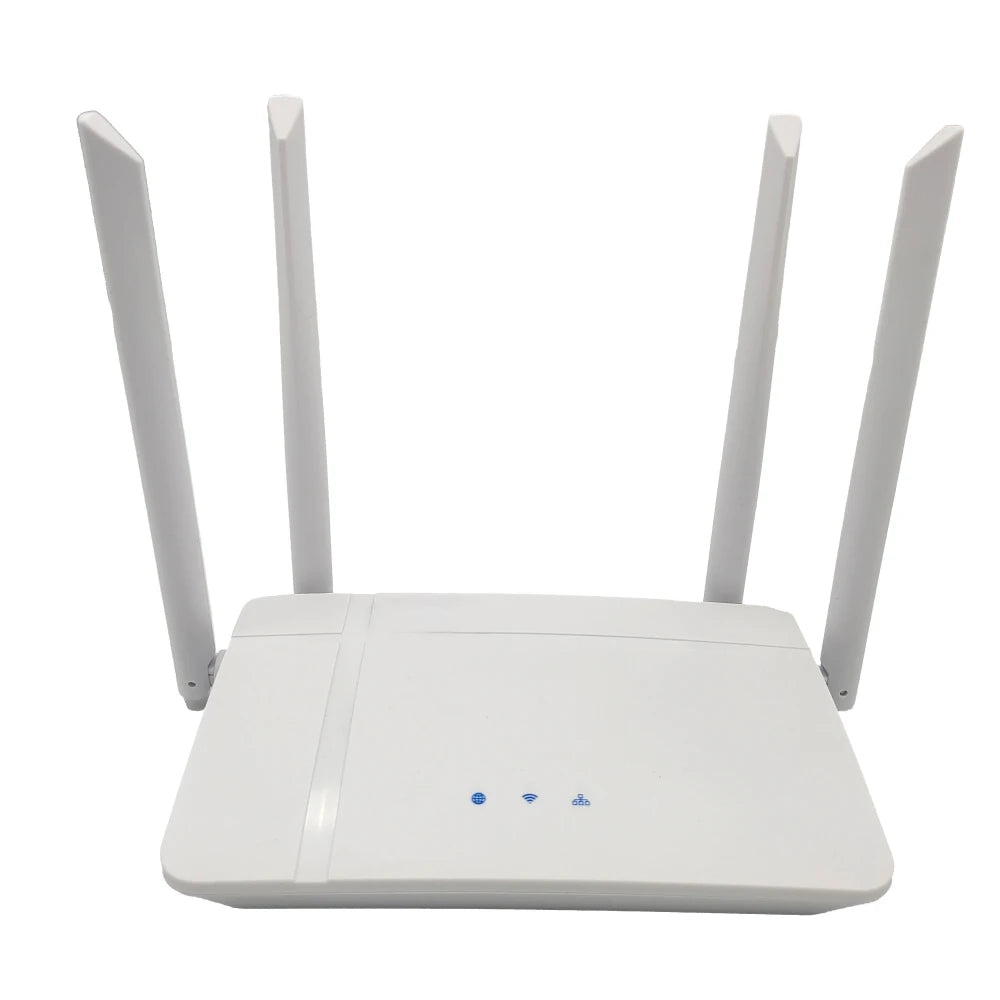

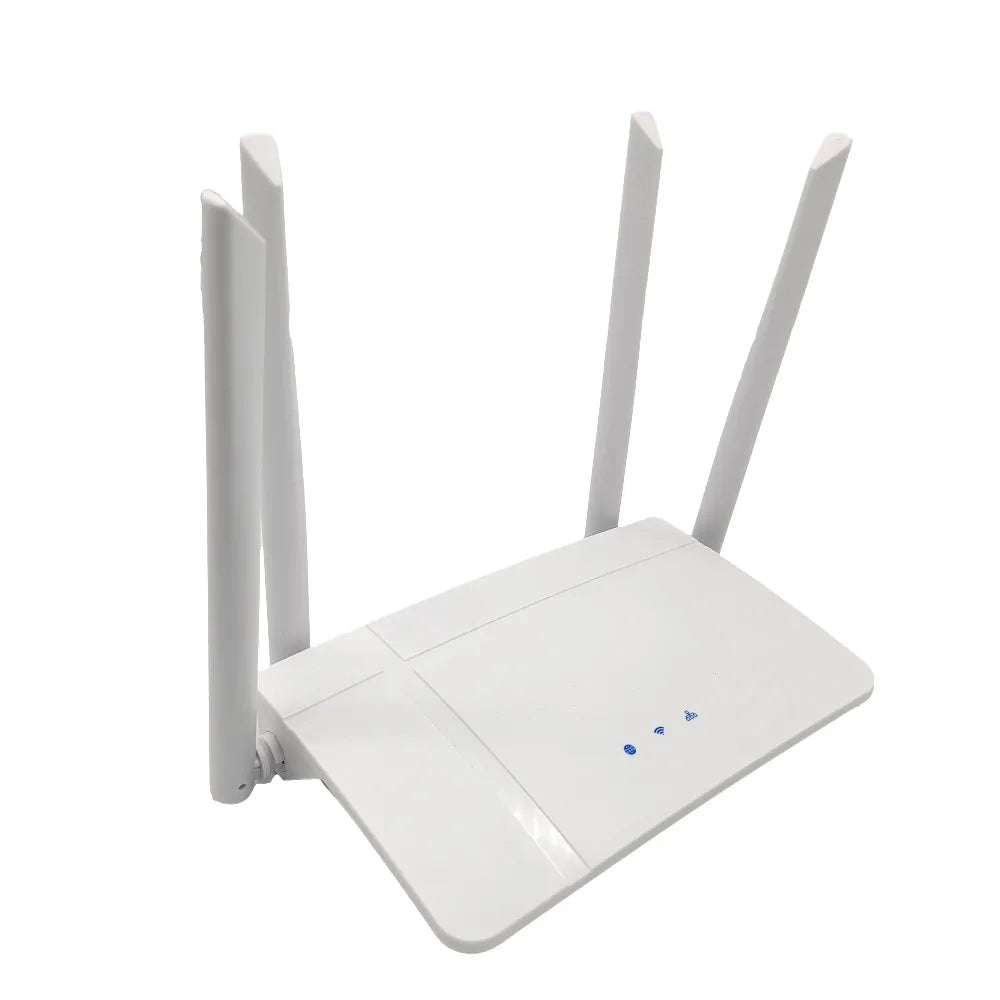

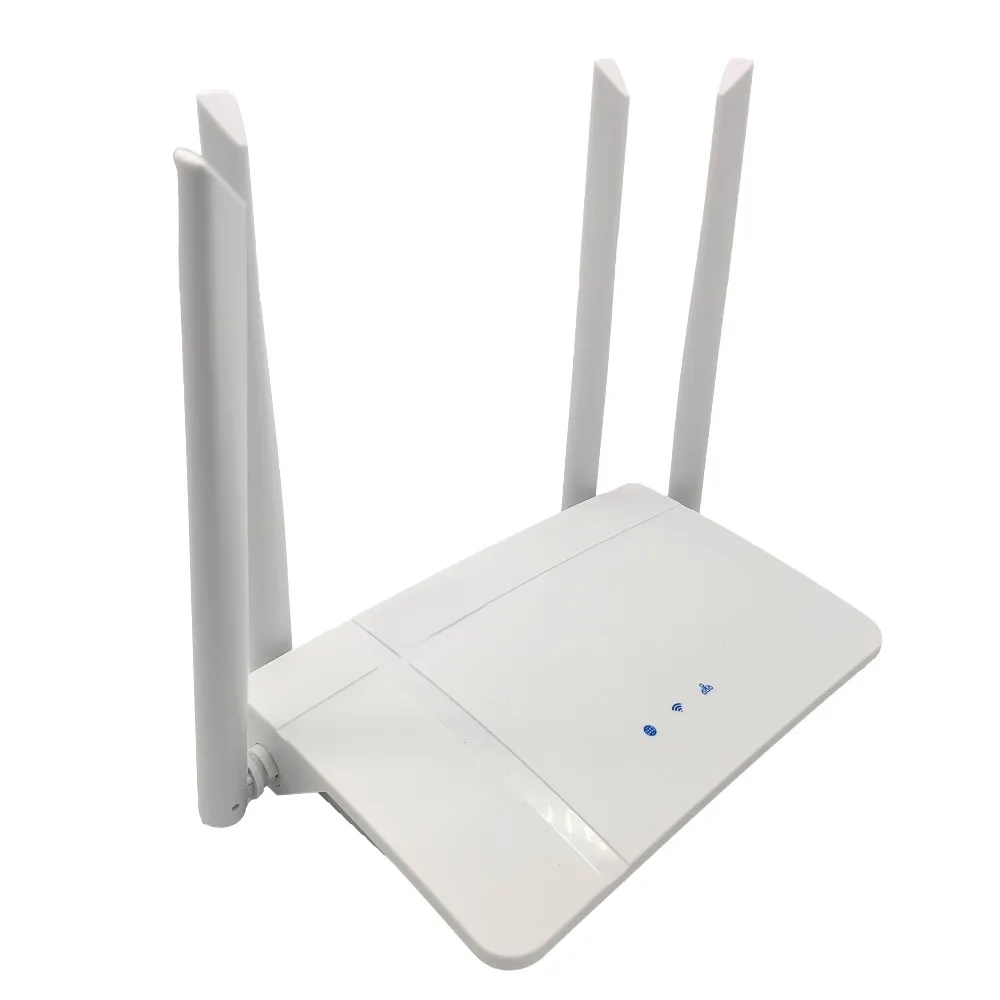

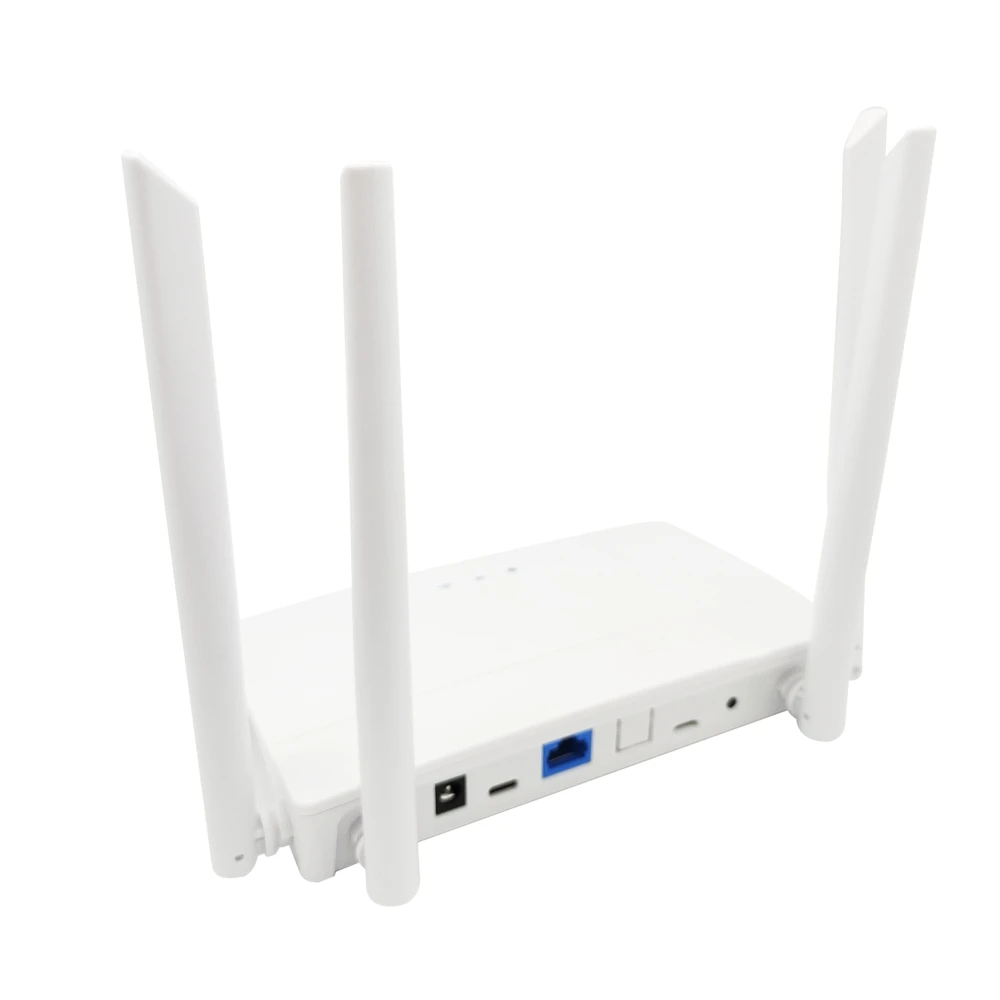

MPC602 is a 2.4GHZ WIFI6 4G CPE, WIFI support 10 wireless users, TYPE-C USB port can be charged and can provide data services to the computer, LAN port can provide data services to the computer, 4 external antennas can well enhance the strength of mobile and WIFI signals
