Friends from around the world, welcome to our PigWang Store.This store provides a 12 month guarantee.All of our products have undergone rigorous testing.Don't forget to subscribe to us!If you have any questions, please contact us.After placing an order, we usually ship within 24 hours.

Notice 1: it does not include adapter,must use 5V/2A adapter towork it, some tv's UsB port only has 5V/0.5A,the power is notenough,it will not turn on as normal,must use a 5V/2A adapter topower it.

Notice 2: if the remote can not work,pls do the factory reset to recoverit。
a,use a computer mouse to work with it,clink right key can enter the Ul.
b,do the factory reset,clink settings -- device perference -- reset.
C,it will restart itself after factory reset, then you can pair the remoteagain.
d,long pressing right and left keys together untill it pair well.

If there are issues with using Netflix
Please don't worry, contact customer service to obtain the latest version of APK. Download link：https://drive.google.com/file/d/1wgA69djSdD3slJ6L5WwP8KlLRm-NElUs/view?usp=sharing

Feature:

1. 92 key, 2.4GHz wireless keyboard, with touch pad.

2. Three color adjustable backboards: Fn+F2 can be pressed and held simultaneously to change three dimming colors.

3. Built in smart touchpad with high sensitivity and 360 degree flip design.

4. Automatic sleep and automatic wake-up mode.

5. Ergonomic handheld design is easy to carry and operate.

6. compatible for PC, Pad, Android TV Box, IPTV, etc.

Specifications:

Working range: 10m (maximum), no signal interference, no direction restriction.

Powered by 2 * AAA batteries (excluding)

●Android 4.0 and above

About Memory Card Issues:

If there is an abnormal situation with the memory card

1. When the memory 64GB card encounters an exception in the settings and the memory capacity cannot be viewed, it can be viewed in the folder.

2. The memory card has a reading error. Remove the card and wipe the golden contact surface before inserting it.

Notice 1: it does not include adapter,must use 5V/2A adapter towork it, some tv's UsB port only has 5V/0.5A,the power is notenough,it will not turn on as normal,must use a 5V/2A adapter topower it.

Notice 2: if the remote can not work,pls do the factory reset to recoverit。
a,use a computer mouse to work with it,clink right key can enter the Ul.
b,do the factory reset,clink settings -- device perference -- reset.
C,it will restart itself after factory reset, then you can pair the remoteagain.
d,long pressing right and left keys together untill it pair well.


Description

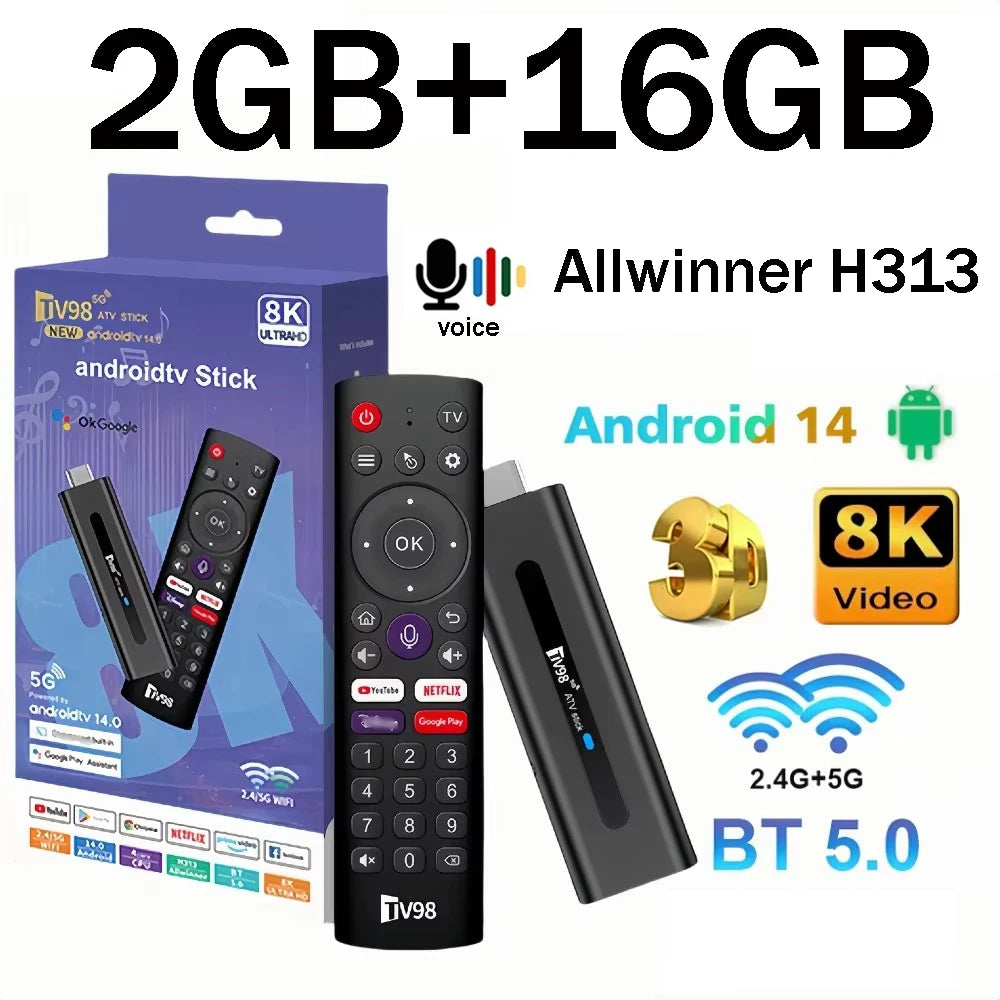

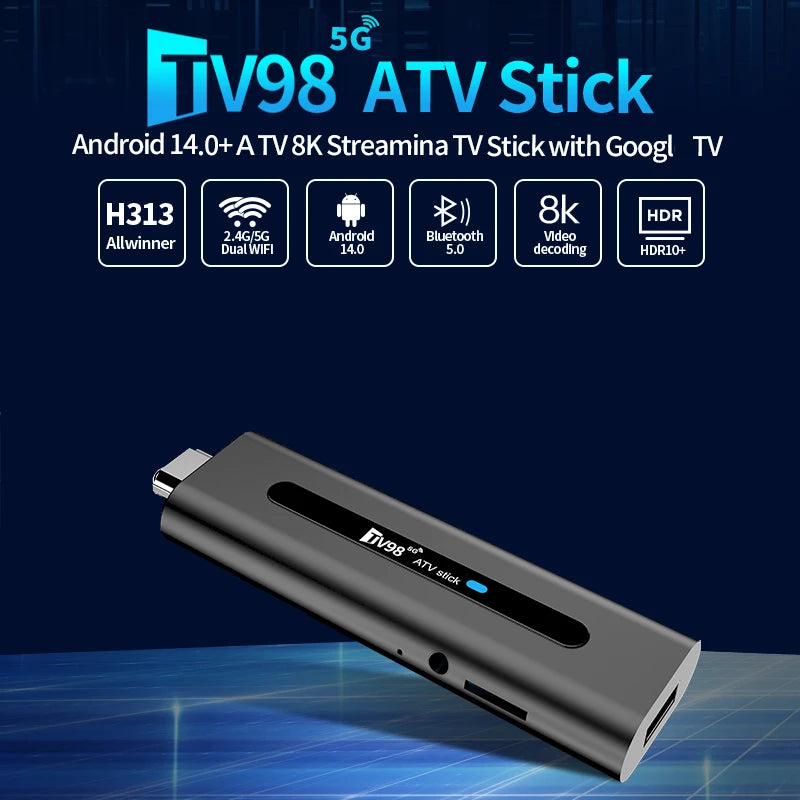

1.System Config

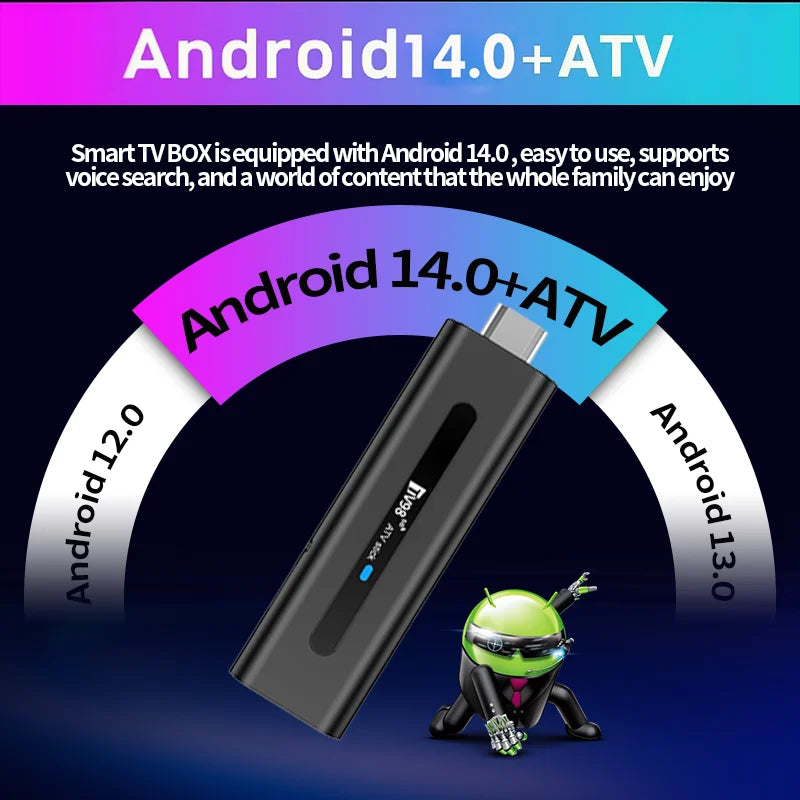

OS:Android 13.0 Upgrade display 14.0 +ATV

CPU:H313 Quadcore cortex-A53

GPU:Mali-G31 MP2

FLASH:8/16GB

SDRAM:1/2GB

Power Supply:DC 5V/2A

KODI:18.1

WIFI:2.4G +5G

Bluetooth:BT5.0

3D:Hardward 3D graphics acceleration

2.Main Features

Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders

- Support multi-video decoder up to 4K@60fps

- Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding

- Video/Picture Decoding

- VP9 Profile-2 up to 4K@30fps

- H.265 Main10@L5.1 up to 4K@60fps

- AVS2 JiZhun 10bit Profile up to 4K@60fps

- H.264 BP/MP/HP@L4.2 up to 4K@30fps

- H.263 BP up to 1080P@60fps

- MPEG-4 SP/ASP@L5 up to 1080P@60fps

- MPEG-2 MP/HL up to 1080P@60fps

- MPEG-1 MP/HL up to 1080P@60fps

- Xvid up to 1080P@60fps

- Sorenson Spark up to 1080P@60fps

- VP8 up to 1080P@60fps

- AVS/AVS+ JiZhun Profile up to 1080P@60fps

- WMV9/VC1 SP/MP/AP up to 1080P@60fps

- JPEG HFIF file format up to 45M PPS

- Multiple language and multiple format sub-title video support

- MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

- Supports JPEG thumbnail, scaling, rotation and transition effects

- Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

Audio

Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing

Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output

• Two DAC channels

• Supports 1 audio output interface (differential LINEOUTP/N or single-end LINEOUTL/LINEOUTR)

• One Audio HUB, supporting internal mixing function

• Embedded 3 I2S/PCM (I2S0 for extended audio codec, I2S2 for BT, I2S3 for digital power amplifier)

• Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode

• I2S mode supports 8 channels, and 32-bit/192kbit sample rate

• I2S and TDM modes support maximum 16 channels, and 32-bit/96kbit sample rate

• One OWA OUT interface, supporting 16-/20-/24-bit inputs and outputs

• Integrated digital microphone(DMIC), supporting maximum 8 digital PDM microphones


HD JPEG、BMP、GIF、PNG、TIF

Language

English French German Spanish Italian etc multilateral languages

The voice remote control supports multi language recognition: English, German, Dutch, French, Portuguese, Spanish, Danish, Finnish, Hebrew, Italian, Japanese, Korean, Malay, Russian, Arabic, Thai, Turkish, Swedish, etc.

Packing List

1*TV98 ATV Stick

1*Voice remote control

1*User Manual

1*HDMI Cable

1*USB Charing Cable
